Bungalow 1855
Lot 12 Custom Estate
An exclusive architectural portfolio situated within the private waterfront enclave of The Residences at Claramount Club. Featuring bespoke craftsmanship, stone masonry, expansive walkout lower level, and refined lakeside outdoor living.
Finished Living
1,855 SQ FT
Bed / Bath
2 Bed · 2 Bath
Architecture
Walkout · 2-Car
www.claramountresidences.ca
The Residences at Claramount Club • Lot 12
Front Elevation Concepts & Architectural Drawing
4K craftsman exterior visualizations paired with official architectural front elevation CAD drawing
Craftsman Elevation
3D Concept B · Featured Elevation
Craftsman Estate Facade · Selection B
Featured Palette
Contemporary horizontal sage wood siding (upgrade option) paired with stone masonry, architectural timber gable brackets, and rich wood-grain carriage garage doors.

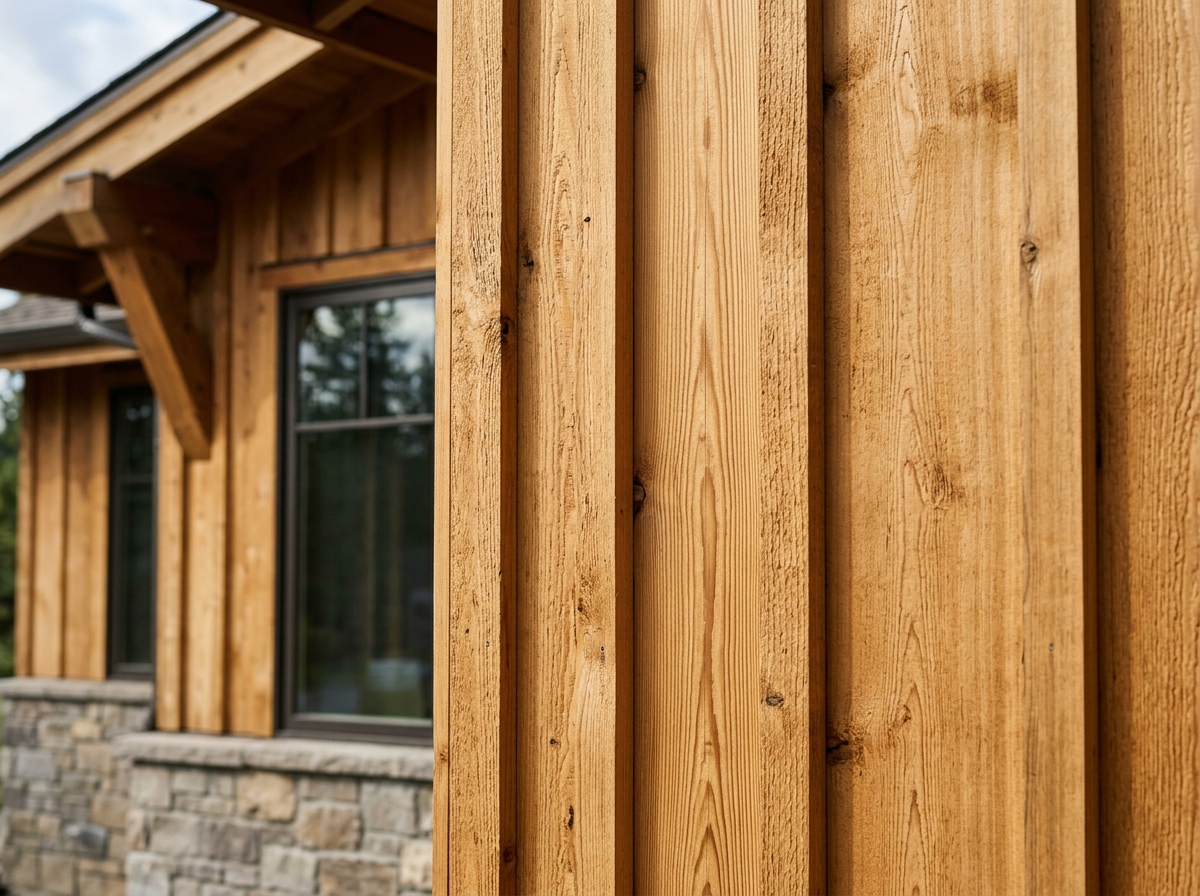

Sage Board Siding (Wood Upgrade)
Stone Facade
Timber Gable Brackets
Wood Carriage Garage Door
Concept A · Horizontal Black Wood
Selection A · Charcoal / Black Palette
3D RenderContemporary horizontal black wood siding paired with stone masonry and standing seam metal roof accents.
Architectural CAD Drawing

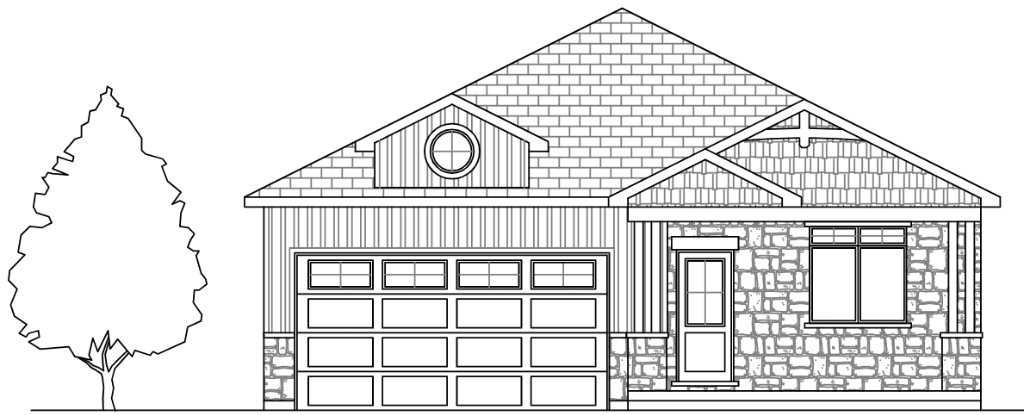

Front Elevation Blueprint
Scale 1/4" = 1'-0"Official CAD blueprint displaying hip rooflines, dormer window & stone datum.
The Residences at Claramount Club • Lot 12
Backyard Living & Lakeside Retreat
Rear terrace architecture, walkout lower-level integration, and private mature tree canopy
Rear Elevation
Rear Architecture: Multi-tiered outdoor entertaining sanctuary featuring an upper 20'×10' rear entertaining deck, walkout lower level, and expansive floor-to-ceiling glass capturing natural light and harbour views.

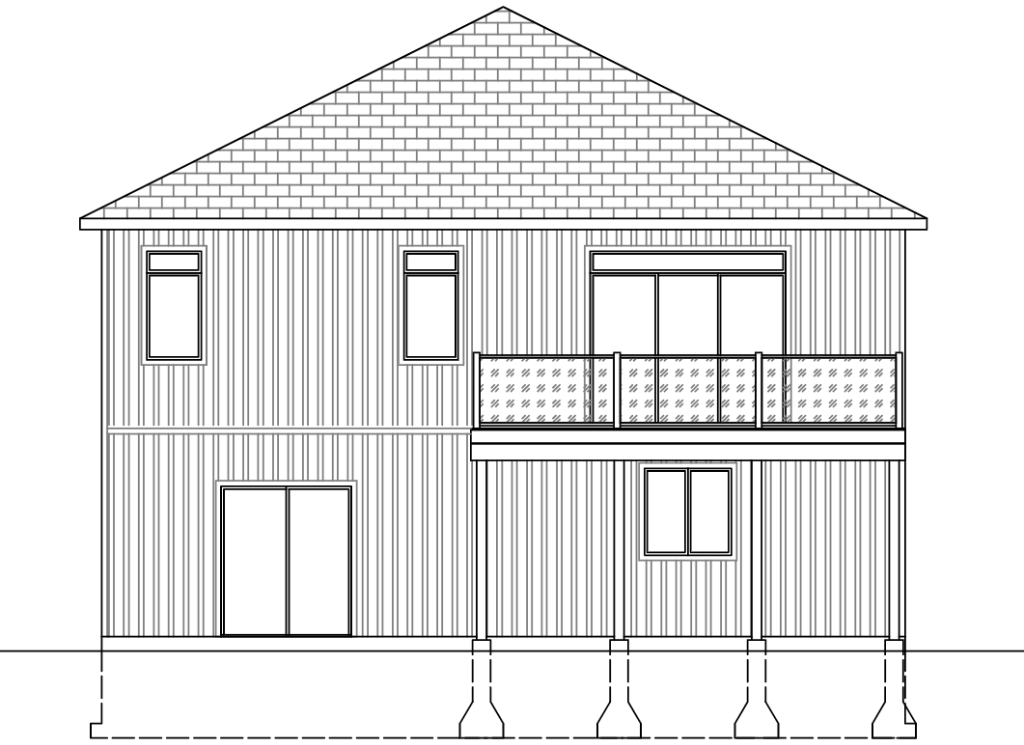

Architectural Rear Elevation
Blackline Plan
Outdoor Living Highlights
- 20'-0" × 10'-0" covered rear dining deck.
- Full walkout lower level to private rear grounds (patio upgrade available).
- High-performance Low-E architectural glass (triple-pane available).
- Private mature tree canopy & tranquil natural setting.
The Residences at Claramount Club • Lot 12
Architectural Side Elevations & Foundation Profile
Left and right profile drawings detailing engineered stepped foundation, roofline slope & grade integration
Side Elevations

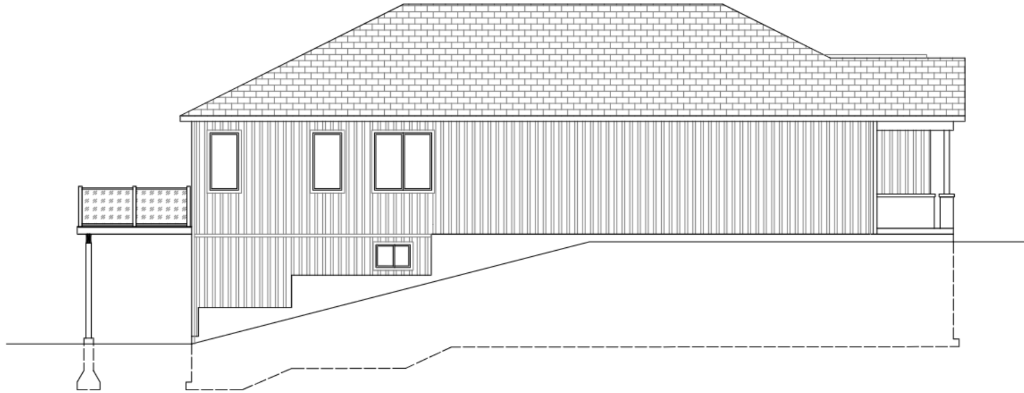

Left Side Architectural Profile
Profile · Left Side
Left Profile: Natural grade slope accommodating the walkout lower-level suite, upper rear covered deck (20'×10'), stepped foundation, and front covered entry porch.

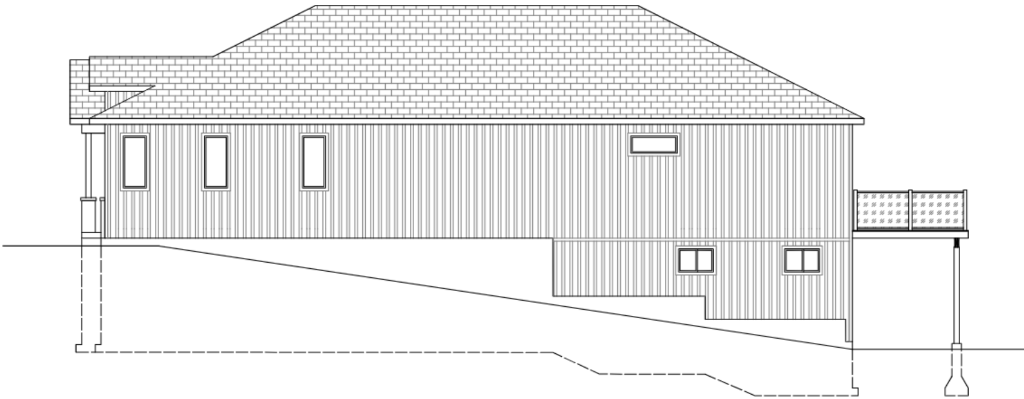

Right Side Architectural Profile
Profile · Right Side
Right Profile: Highlights the double attached garage massing, engineered foundation stepping, architectural glazing placement, and continuous roofline slope.
The Residences at Claramount Club • Lot 12
3D Spatial Concept & Interior Flow
Full-dimension isometric cutaway illustrating open-concept flow, ceiling volumes & room connections
3D Architecture
MAIN LEVEL CUTAWAY
1,855 SQ FT
Bespoke Living Flow · Lot 12 Bungalow 1855
Great Room Volume: Spacious 9' ceiling volume with focal fireplace wall & walkout to rear entertaining deck.
Chef-Inspired Kitchen: 7' quartz island, walk-in pantry & integrated open dining room.
Primary Suite Wing: Private retreat with 5-piece ensuite, freestanding soaker tub & dual walk-in closets.
Bedroom 2: Front guest bedroom / executive office with adjacent 3-piece bathroom.
Attached Double Garage: Direct interior entry adjacent to kitchen pantry, basement stairs & coat closet.
The Residences at Claramount Club • Lot 12

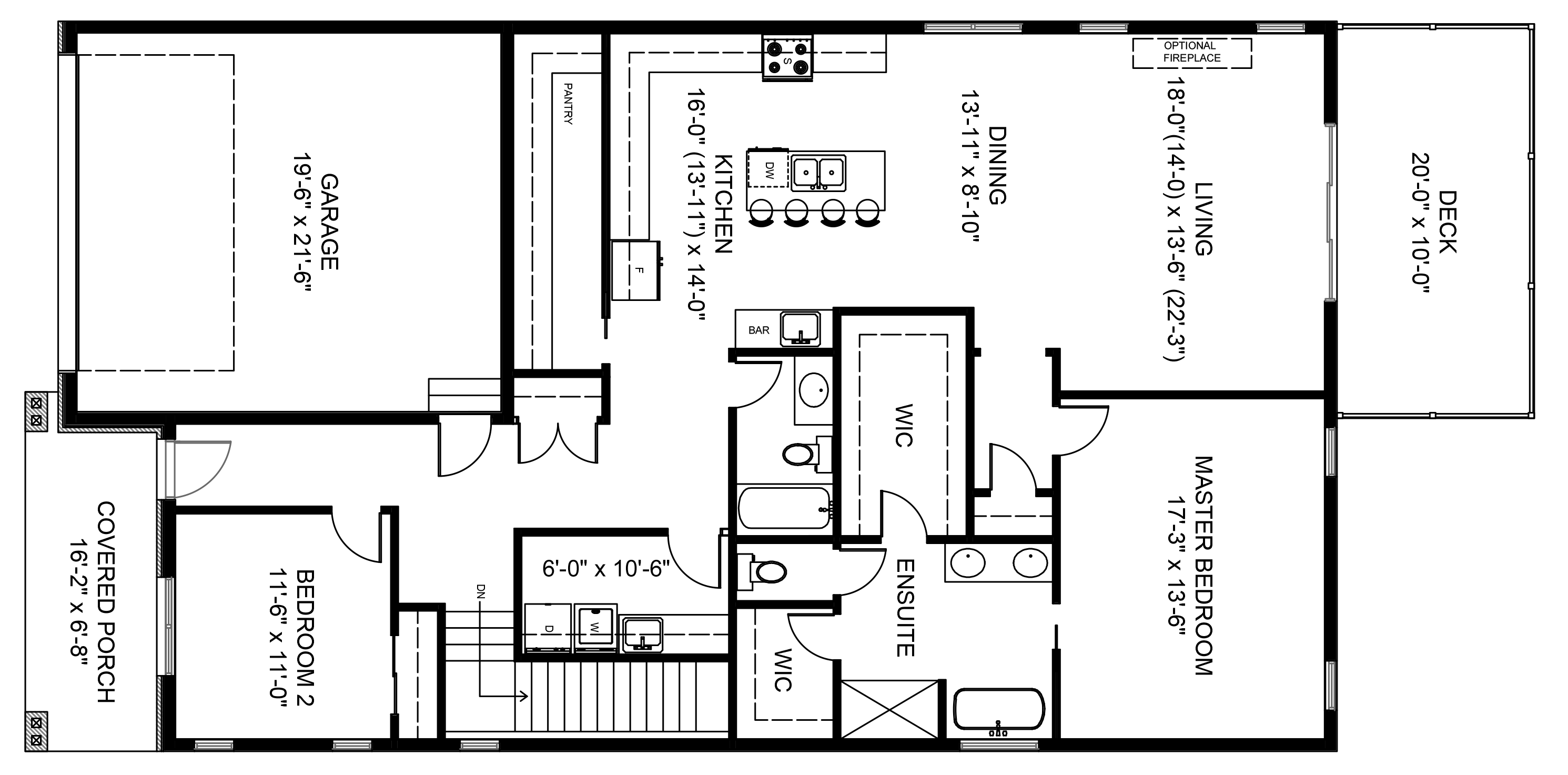

Main Level Architectural Floor Plan
Bungalow 1855 architectural blueprint layout — 1,855 SQ FT finished main floor
Bungalow 1855
BUNGALOW 1855 • 1,855 SQ FT • LOT 12
The Residences at Claramount Club • Lot 12
Architectural Specifications & Room Schedule
Comprehensive dimension breakdown, mechanical engineering & estate custom finishes
Specifications
Bungalow 1855 · Custom Estate
Lot 12 Port Picton · The Residences at Claramount Club
Lot 12
Main Living
1,855 SQ FT
Bedrooms
2 Bed
Bathrooms
2 Full Baths
Main Ceilings
9'-0" Volume
Attached Garage
19'-6" × 21'-6"
Foundation
Full Walkout
Claramount Club Standards & Architectural Upgrades
Wood Floor
Std
Wide-plank wood.
Quartz Slabs
Std
Kitchen & baths.
Paved Driveway
Std
Asphalt finish.
Low-E Glass
Std
Low-E windows.

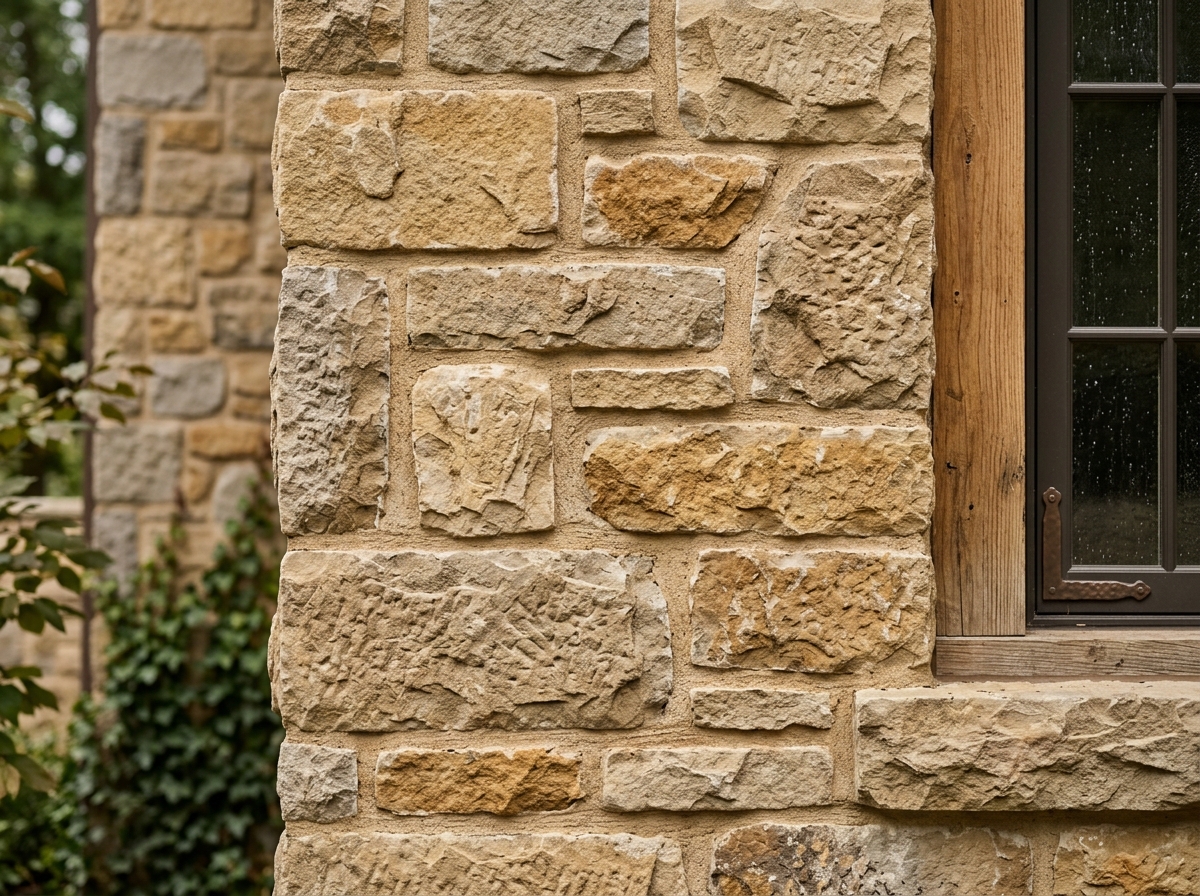

Quarry Stone
Upgrade
Stone facade.
Metal Roof
Upgrade
Metal accents.
Wood Garage
Upgrade
Cedar doors.
Wood / Glass
Upgrade
Siding & rails.
Architectural Room Schedule & Blueprint Dimensions
Great Living Room
18'-0" × 13'-6"
Spacious 9' ceiling volume with focal fireplace and rear deck walkout.
Kitchen & Dining
16'-0" × 12'-0"
Custom cabinetry, centre island with sink/DW and walk-in pantry.
Primary Suite Wing
17'-3" × 13'-6"
Private retreat wing featuring 5-piece luxury ensuite and dual walk-in closets.
Bedroom 2
10'-0" × 11'-0"
Front guest bedroom with adjacent 3-piece bathroom.
Formal Dining Room
11'-6" × 11'-2"
Architectural dining room with direct flow to the kitchen and foyer.
Porch & Garage
19'-6" × 21'-6"
Sheltered front porch and insulated double garage with mudroom entry.
The Residences at Claramount Club • Lot 12
The Claramount Lifestyle & Enclave
Historic Picton Harbour waterfront living in Prince Edward County
Harbour Enclave
HISTORIC CLARAMOUNT CLUB • PICTON HARBOUR
Port Picton Homes
Crafting Homes. Building Dreams in Prince Edward County.
Head Office & Design Studio
Port Picton Homes
Picton, Prince Edward County, ON
Builder Inquiries & Information
info@portpictonhomes.com
www.portpictonhomes.com
Tarion Registered Builder • Custom Estate Architecture
www.portpictonhomes.com
RE/MAX Quinte Ltd.
Exclusive Real Estate Sales & Client Representation
Sales Representation
Elyse Cleave
Sales Representative • RE/MAX Quinte Ltd.
elyse@remaxquinte.com
613-503-2128
